ARGUS Laser Scoring & Perforation for Easy-Tear Flexible Packaging SCM55

| Galvo Head Model

Model	SCM55/SCM70/SCM100
Laser Power	55/70/100 watts
Laser Source	Coherent CO2metal RF Laser source
Laser Wavelength	10.6μm
Laser Frequency	1kHz~25kHz
Galvo Head	High speed galvo scanner
Idle Marking Speed	3000mm/s
Flim Perforation Speed	50-280 meters/min(according to the material, laser power and processing design)
Repetition Precision	0.01mm
High Precision Sensor	Japanese RGB Sensor Eye Mark Reader ( Response time 200us)
Emulated Encoder	Including
Control System	JCZ/BSL
Including	Customized mounting structure, Computer with software, Exhausting Fans, Air Pump
Power Supply	110V~220V/50Hz~60Hz
Cooling Way	Air/water Cooling
Multi-head	Avaible according to the request

| 3D Galvo Head Model

Model	SCM2000
Laser Wavelength	10.6μm
Laser Source	Coherent J2 R.F. metal laser source
Output Power	230~250W
Laser Repetition Frequency	1Khz~100Khz
Galvo Head	High speed 3D galvo scanner
Max Marking Area	250mm*250mm ~600mm*600mm
Marking Speed	≤ 7000mm/s
Repeat Accuracy	±0.01 mm
Fly Marking Speed	50X50mm window 120 m/min( depending on material process)
High Precision Positioning Sensor	1RGB sensor (imported from Japan) response time 50 us digital encoder
Cooling mode	Circulating water cooling
Working Power	AC220V/AC380V 50HZ/60HZ
Average power consumption	7KW
Multi-head	Avaible according to the request

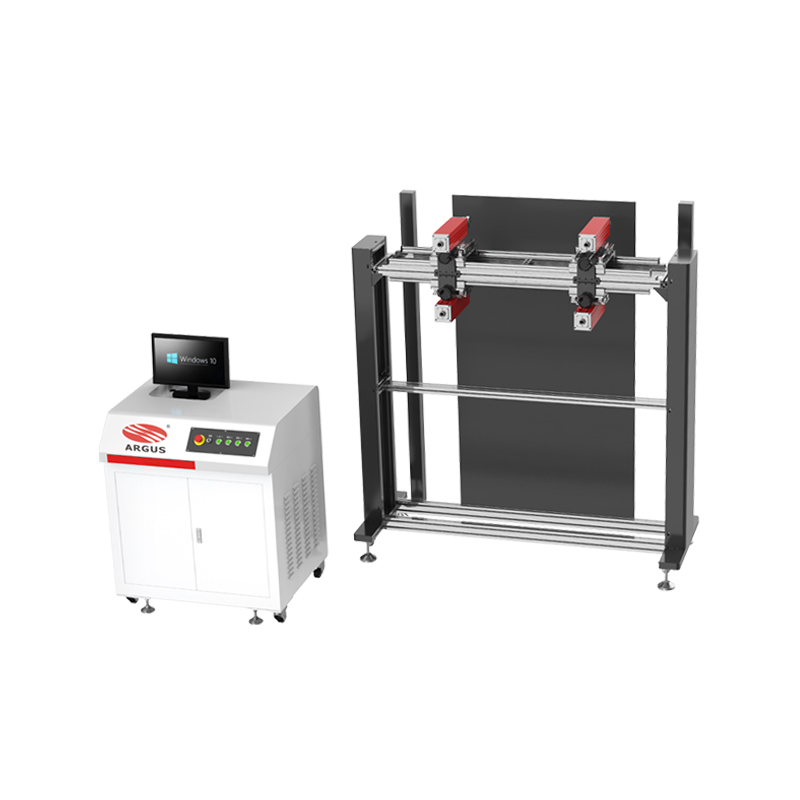

| Components of the Product

Laser Head Model	Galvo Head Model	3D Galvo Head Model
Vertical laser head	Galvo Scanning System
R.F. Laser Metal Tube

| Advantages of Laser Technology in Flexible Packaging

1) Using fast laser perforating, holes are protective due to the round shape burning melt, not easy break.

2) High-speed detection, uniform hole size, adjustable hole spacing, any direction.

3) Circulating water cooling of the galvanometer control board, continuous high-speed (50-280m/min) operation, low failure rate.

	Laser Perforation	Mechanical gear punching
Perforation Direction	Any direction	One direction
Error Accuracy in high speed	< 0.1-0.5mm	< 1-1.5mm
Perforation speed	50-280meters/min	100-180meters/min
Hole diameter	Same size, min 0.1-0.3mm	not uniform
Holes distance	Always keep same distance(min 0.3mm)	not uniform
All Holes quality	Very uniform	Easy change shape during highspeed working, not uniform
Consumables part	No consumption parts	Change gears always
Application	Cut holes, lines and so on	Just can cut holes

| Application Materials

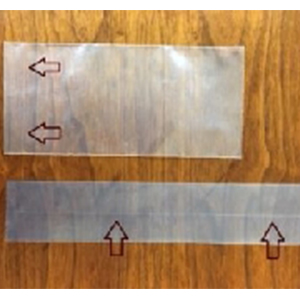

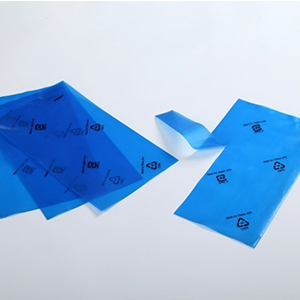

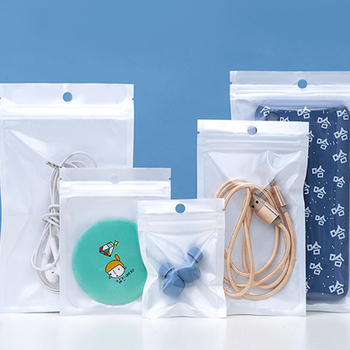

PVC/PET/PE/OPS Single Layer

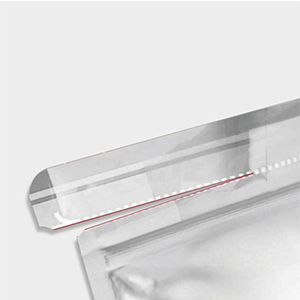

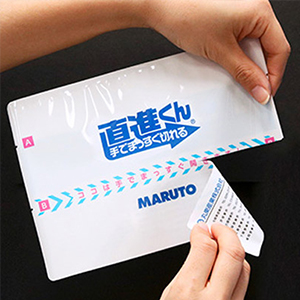

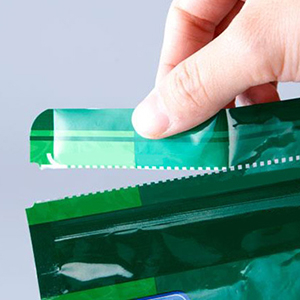

Plastic-Plastic Laminate

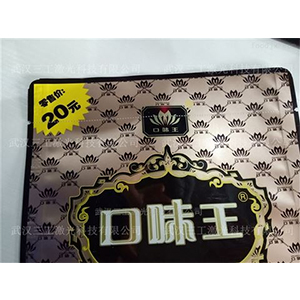

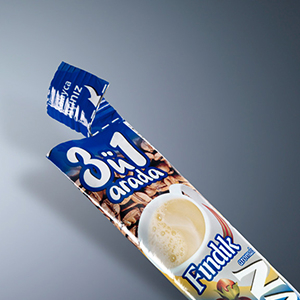

Aluminum-Plastic Laminate

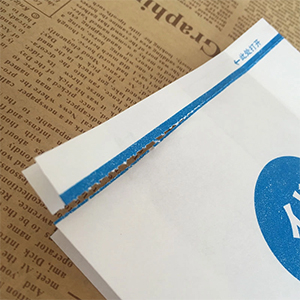

Paper-Plastic Laminate

1. Versatility:

ARGUS LASER's machines offer versatility in terms of accommodating different materials and thicknesses. This flexibility is beneficial for industries with diverse requirements, allowing the machine to handle a range of materials used in packaging and other applications.

2. Advanced Technology:

ARGUS LASER utilize advanced laser technology, providing efficient and effective solutions for scoring and perforating. This could include features such as advanced control systems and automation, contributing to improved overall performance.

3. Customization Capabilities:

The laser scoring and perforation machine from ARGUS LASER allow for customization of different mounting structure. This is valuable for industries that use different kind of slitting and rewinding system.

4. Production Efficiency:

ARGUS LASER's machine is designed to enhance production efficiency. Laser technology is often recognized for its speed and precision, contributing to faster production cycles and potentially reducing overall manufacturing costs.

5. Reliability and Durability:

ARGUS LASER machines is known for its reliability and durability, ensuring consistent performance over time. This is crucial in industrial settings where downtime can have significant impacts on production.

6. Easy of Use:

The laser scoring and perforation machine from ARGUS LASER is designed with user-friendly interfaces and controls. This ease of use can contribute to quicker setup times, reduced training needs, and improved overall operational efficiency.

7. Technical Support and Service:

ARGUS LASER provides strong technical support and service for their machines. This is essential for addressing any issues promptly, conducting routine maintenance, and ensuring that the equipment operates at peak performance.

8. Industry Reputation:

During the 25 years history, ARGUS LASER gains a good reputation within the industry and positive feedback from other users. A strong reputation often indicates a track record of delivering reliable and effective solutions.
