SCU1390
ARGUS

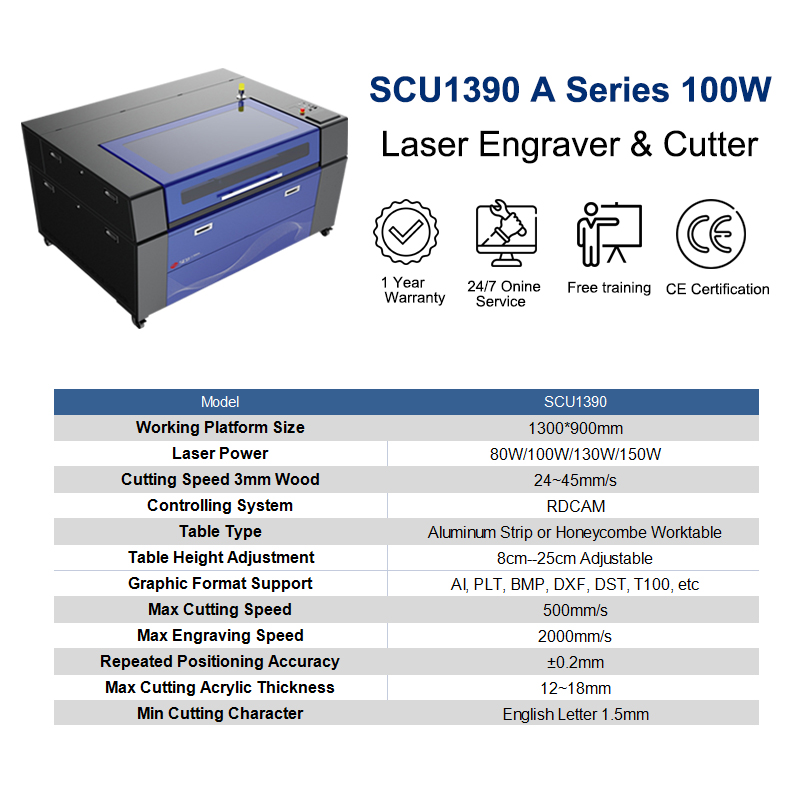

Speedy Laser Engraver Cutter SCU 1390A
Equipment Performance
High precision Taiwan Hiwin double guide rail, 3-phase stepper motor and driver, belt transmission, channel-type feeding, up&down worktable, honey-comb or aluminum strip worktable, circulation water cooling, hydraulic protection, dust and smoke exhausting, huff protection, etc.
This machine is widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.
Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma, Corfam, Textile, Chemical leather, etc.
1. High speed with max engraving speed 2000mm/s
2. High resolution can reach 1,000~1,200DPI
3. Long life span 20,000hrs, gas refill available;
4. Solid X/Y linear guide motion module and high precision Hiwin square guide rail ensure high stability and high precision of machine operation;
5. Closed construction gantry: free of dust and smoke, low maintenance;
6. All electrical parts strictly conform to CE Standard;

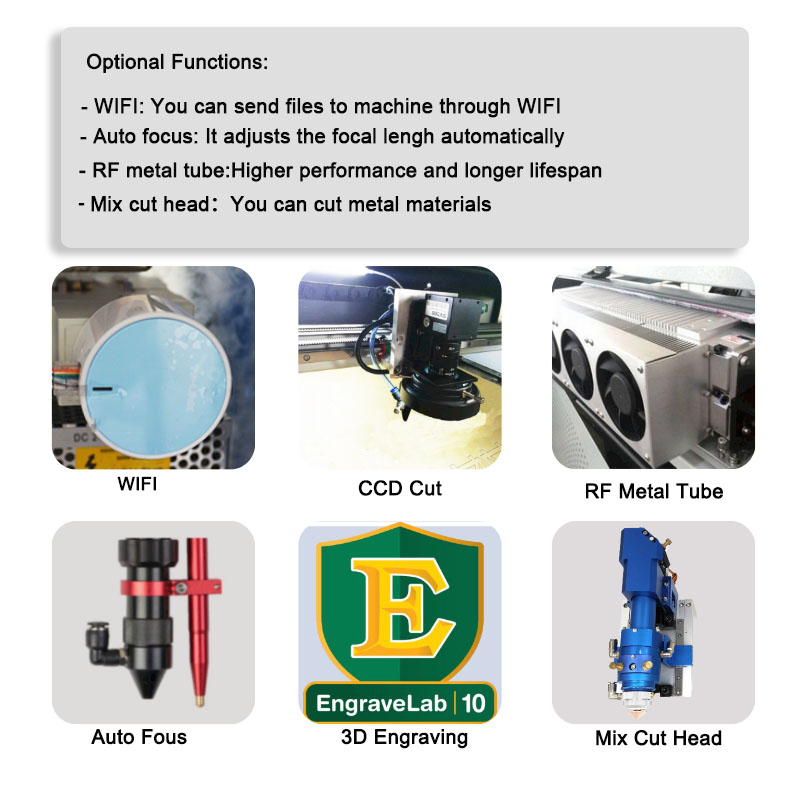

Powerful software with 3D engraving, Nesting, photolaser and vectorization;
Speedy Laser Engraver Cutter SCU 1390A
Equipment Performance
High precision Taiwan Hiwin double guide rail, 3-phase stepper motor and driver, belt transmission, channel-type feeding, up&down worktable, honey-comb or aluminum strip worktable, circulation water cooling, hydraulic protection, dust and smoke exhausting, huff protection, etc.
This machine is widely applied in the field of advertising industry, decoration, furniture, model manufacturing, and handcraft industry for the fine engraving, cutting and hollowing out on almost all non- metallic materials with all kinds of characters, graphs, images, trademarks and so on.
Acrylic, Plastic, Plank, ABS, Wood, Plywood, Bamboo, Paper, Organic glass, MDF, PVC, Rubber, Density board, Cloth, Leather, Derma, Corfam, Textile, Chemical leather, etc.
1. High speed with max engraving speed 2000mm/s
2. High resolution can reach 1,000~1,200DPI
3. Long life span 20,000hrs, gas refill available;
4. Solid X/Y linear guide motion module and high precision Hiwin square guide rail ensure high stability and high precision of machine operation;
5. Closed construction gantry: free of dust and smoke, low maintenance;
6. All electrical parts strictly conform to CE Standard;
Powerful software with 3D engraving, Nesting, photolaser and vectorization;
Terms | Technical Parameter |
Brand | Argus |
Model | SCU1390 |
Working Platform Size | 1300*900mm |
Laser Power CO2 | 80/100/130/150watts |
Origin Setting(Red Pointer) | Red Pointer: 650nm |
Controlling system | Ruida |
Table Type | Aluminum Strip/Honey comb |
Worktable Up & Down | 10cm Adjustable |
Air Pump | Power: 138W |
Flow Rate: 100L/Min | |
Exhaust Fan | Voltage: 220V |
Power: 550W | |
Blowing Rate: 18m3/min | |
Calibre Of Outlet: 80mm | |
Wind Pressure:1.70Kpa | |
Rotating Speed:2800RPM | |
Focus Lens | 2.5 inch |
3-Phase Stepper Motor | Phase Current: 3.5A |
Whole Stepping Angle:1.2° | |
Torque: 0.9N.m | |
Mo Mirror Reflectivity | 95% |
Software Format Support | CorelDraw, Photoshop, AutoCAD, etc |
Graphic Format Support | AI, PLT, BMP, DXF, DST, T100, etc |
Process Material | Non-metal Materials |
Max Cutting speed | 300mm/s |
Max Engraving speed | 1000mm/s |
Repeated Positioning Accuracy | ±0.2mm |
Min. Cutting Character | English Letter: 3mm |
Max. Cutting Depth | 0-15mm(it’s up to the material) |
Cooling ways | Circulation Water Cooling |
Working Temperature | 0-35°C |
Working Humidity | 5-95% |
Working Power | 220V/50Hz/60Hz/2kVA, 110V/50Hz/60Hz/2kVA |
Packing Dimension | 2185*1465*1260mm |
Net weight | 450KG |
Gross Weight | 500KG |
Cubage | 4.03CBM |
Package | Standard Fumigation-Free Crate For Exporting |
Terms | Technical Parameter |
Brand | Argus |
Model | SCU1390 |
Working Platform Size | 1300*900mm |
Laser Power CO2 | 80/100/130/150watts |
Origin Setting(Red Pointer) | Red Pointer: 650nm |
Controlling system | Ruida |
Table Type | Aluminum Strip/Honey comb |
Worktable Up & Down | 10cm Adjustable |
Air Pump | Power: 138W |
Flow Rate: 100L/Min | |
Exhaust Fan | Voltage: 220V |
Power: 550W | |
Blowing Rate: 18m3/min | |
Calibre Of Outlet: 80mm | |
Wind Pressure:1.70Kpa | |
Rotating Speed:2800RPM | |
Focus Lens | 2.5 inch |
3-Phase Stepper Motor | Phase Current: 3.5A |
Whole Stepping Angle:1.2° | |
Torque: 0.9N.m | |
Mo Mirror Reflectivity | 95% |
Software Format Support | CorelDraw, Photoshop, AutoCAD, etc |
Graphic Format Support | AI, PLT, BMP, DXF, DST, T100, etc |
Process Material | Non-metal Materials |
Max Cutting speed | 300mm/s |
Max Engraving speed | 1000mm/s |
Repeated Positioning Accuracy | ±0.2mm |
Min. Cutting Character | English Letter: 3mm |
Max. Cutting Depth | 0-15mm(it’s up to the material) |
Cooling ways | Circulation Water Cooling |
Working Temperature | 0-35°C |
Working Humidity | 5-95% |
Working Power | 220V/50Hz/60Hz/2kVA, 110V/50Hz/60Hz/2kVA |
Packing Dimension | 2185*1465*1260mm |
Net weight | 450KG |
Gross Weight | 500KG |
Cubage | 4.03CBM |
Package | Standard Fumigation-Free Crate For Exporting |
