ARGUS CO2 laser cutting machine for Acrylic display window cutting - ARGUS LASER

✦With high-speed servo motors, up to 3000mm/s,Up to 1,200 DPI
✦Up to 3x faster than standard stepper motors
✦Higher wattage for cutting thick materials
✦Glass tube life can reach 10000 Hours , RF.metal laser tube available
✦Auto-focus, Red Dot Pointer, and Status Indicator Light
Availability:
Quantity:
  • SCU1390

Proessional CO2 laser Engraving and Cutting on Acrylic  display window Machine


High Efficiency / Low Maintenance / Long Lifespan

Integrated Workstation For Cutting Engraving

Acrylic.Wood.Paper.More


1390调色板

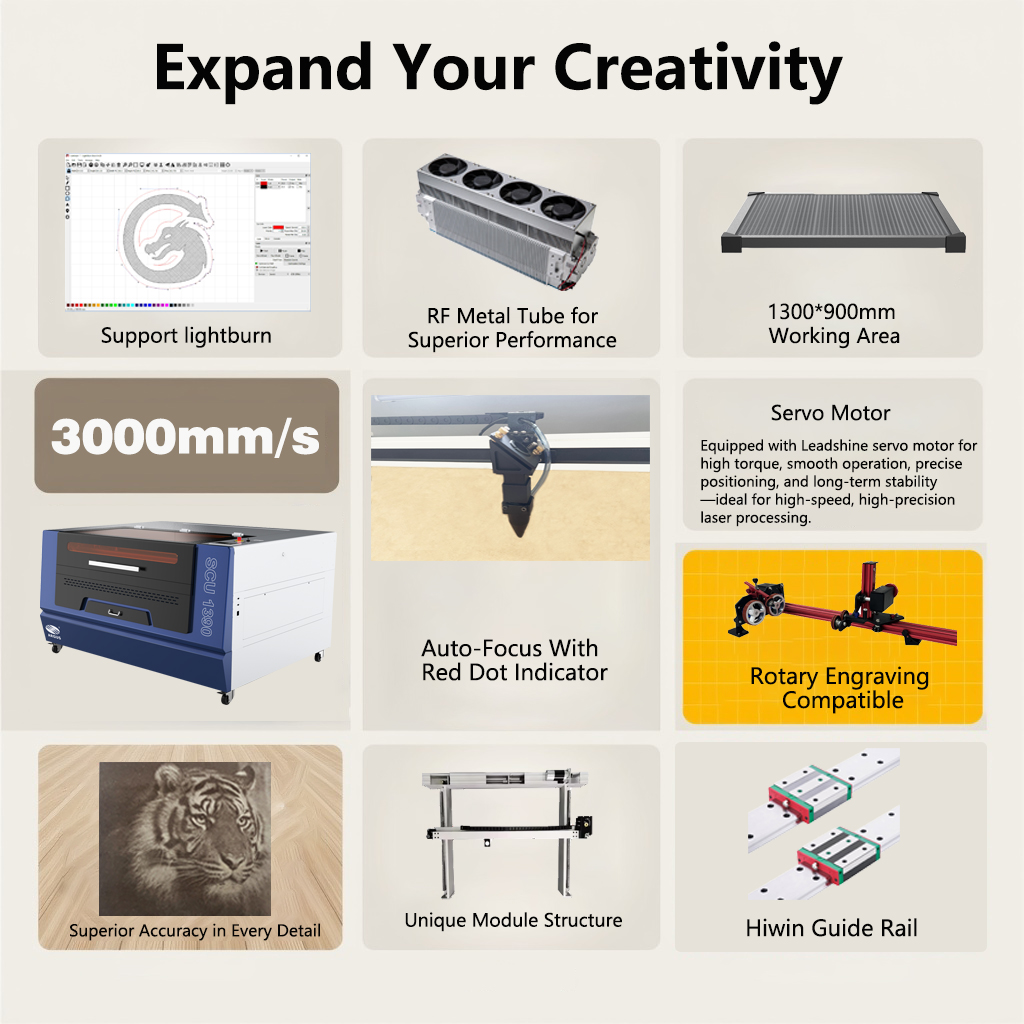

       FEATURES

xq2

✔ 100W LASER CUTTING POWER(Optional)

✔ PASS-THROUGH DOOR

✔ DUAL WORKBEDS

✔ RUIDA DIGITAL CONTROLLER

✔ LINER RAIL GUIDING SYSTEM

✔ USB & ETHERNET PORTS

✔ COMPATIBLE WITH LIGHTBURN SOFTWARE

✔ 1 YEAR WARRANTY

✔ TECH SUPPORT


Unique Module Structure

① Higher Strength

模组500

Avaition aluminum alloy material More stronger
More Accuracy
The module is formed in one time Avoid to manually assemble
Longer Lifespan
Keep A axis and Y axis both 90° Can be used continuously for 10 years.

PRODUCT COMPOSITION

Our CO2 laser engraving cutting machines offer a solution for highquality engraving and cutting of acrylics, cardboard, wood,textiles,two-color sign laminate, stone, and much more. Our laser machines are the most robust,accurate, and reliable on the market.


33
Honeycome+Knife Blade Platform
The A/X machines all come with both honey comb and knife blade platforms for more flexibility with large or small material processing.

Linear Guide Rail
1.Adopted Taiwan Hiwin linear guide rail,    2.high positioning accuracy, reduce wear to maintain accuracy for a longer time


221
模组500

Unique Module Structure
1.The unique module structure is formed in one time assembly to avoid to manually assemble,
2.more accuracy ;Keep A axis and Y axis both 90°for 7-10 years


USA Coherent RF Metal Laser Source

1.High-Resolution RF Metal source ensures ultrarefined detailing. Capable of 2000DPI
2.Metal tube design provides a higher beam quality and longer life.A Beam expander is helpful for a finer laser output quality.


射频管
servo motor

High Speed Servo Motor


Stands out with its advantages of lightning-fast speed of up to 2000mm/s and stable movement frequency.

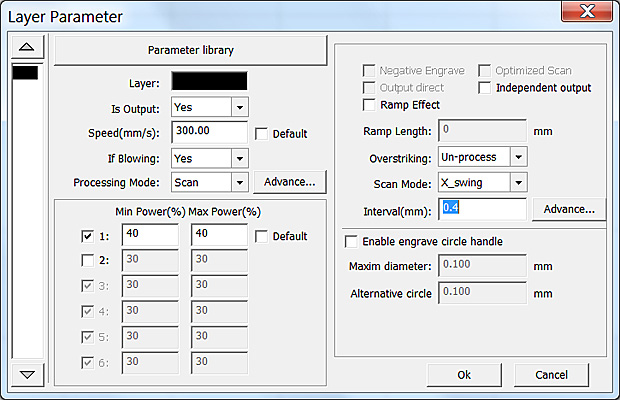

Control Software
Friendly software, enabling the import of files: plt, ai, bmp, dxf, dst, having many useful functions, defining work values
assigned to a given line color (cutting, engraving, laser speed and power).


绘图 (2)
5E733DB0-B6C6-4ec2-875A-1F586A9A4A54

Pass-through Door
Pass-through front to rear doors



APPLICABLE MATERIAL FOR REFERENCE

  • ACRYLIC

  • FABRICS

  • GRANITE

  • CRYSTAL

  • FOAM

  • WOOD

  • GLASS

  • MARBLE

  • PAPER

  • CLOTH

  • LEATHER

  • RUBBER

  • STONE

  • BAMBOO

  • MATTE BOARDS

  • PLASTICS

  • CORK

  • MDF

  • PLYEOOD

  • FIBERGLASS


ACRYLIC LASER ENGRAVING AND CUTTING SAMPLE DISPLAY

Acrylic Awards
34 iMP102G__63889 71t02GEJ8IL 56
Acrylic LED Lights
23 45 81+QI5H+akL 333
Acrylic Signs

44

3 45 91h-4U0hJHL
 Acrylic Keychains
acrylic 666 acrylic Acrylic-Keychain-Engraved-Name3


Materials that can be processed with a CO2 laser

Argus laser Customized laser solutions for your business! Join us! Combine your unlimited creativity & imagination with our laser products and make them real. Please select your interested applicable industry and product line and click on the search to find the range.


Engraving Cutting
Engraving Cutting
wood laser engraving  Wood laser engarving wood laser cutting wood Rubber laser engraving cutting  Rubber

Rubber laser engraving

Rubber laser cutting

acrylic laser engraving cutting  Acrylic

acrylic laser engraving

acrylic laser cutting

Foam laser engraving cutting   Foam

Foam laser engraving

Foam laser cutting

Plastic laser engraving cutting  Plastic

Plastic laser engraving

Plastic laser cutting

Glass laser engraving cutting  Glass Glass laser engraving

Glass laser cutting

MDF laser engraving cutting  MDF

MDF laser engraving

MDF laser cutting

Metal Coating laser engraving cutting   Metal Coating

Metal Coating laser engraving

Metal Coating laser cutting

Leather laser engraving cutting  Leather

Leather laser engraving

Leather laser cutting

87B33CB9-8C7D-4f43-BCCB-E1D129D9F1FE   Stainless Steel

minus_1690x

minus_1690x

Paper laser engraving cutting  Paper

Paper laser engraving

Paper laser cutting

487FC72F-7C54-4de9-B3F4-031C90D154CB   Aluminum

minus_1690x

minus_1690x

Cardboard laser engraving cutting Cardboard

Cardboard laser engraving

Cardboard laser cutting

2FFB706F-843A-43c5-80F3-FD9C32CB31B2   Titanium

minus_1690x

minus_1690x

Stone laser engraving cutting Stone

Stone laser engraving

Stone laser cutting

412DA6C5-C45B-4c20-87A7-571A40EEDACD   Silver

minus_1690x

minus_1690x

Textile laser engraving cutting Textile

Textile laser engraving

Textile laser cutting

0EDE4EE8-3B91-4d73-B993-45A46FFBD7E9   Gold

minus_1690x

minus_1690x


CO2 Laser Engraving APPLICATION FLELDS

Advertising Industry Model Industry Furniture Industry Garment Industry
3 wooden toys 家具 服装辅料1
Leather Industry Handicraft industry Packaging Industry Glass Industry
4 750-400-36 laser cut glass




ARGUS LASER ENGRAVER TURNS YOUR

CREATIVE VISIONS INTO REALITY IN MINUTES

✔ WIFI Connection    ✔ Dustproof guide rails    ✔ Autofocus system


1390

1
Working Size 1300*900MM
2 Up&down Table 20cm Adjustable
3 Laser Power 80W/100W/130W/150W
4 Origin Setting (Red Pointer) Red Pointer:650nm
5 Table Type Aluminum Strip/Honey Comb
6 Max Engraving Speed 2000mm/s
7 Max Cutting Speed 500mm/s
8 Max Cutting Thickness Of Acrylic 12~18mm
9 File Format Supported PLT,DXF,AI,DST,DSB,JPG ect
10 Standard Accessory Water Chiller,Exhaust Fan,Air Pump
11 Repeated Positioning Accuracy ±0.2MM
12 Min Cutting Character English Letter:3mm
13 Cooling Mode Water Cooling
14 Max Cutting Depth 0~15mm(lt's up to the material)


Affordable Laser Cutting Solutions and Services
Laser Cutting Highest Quality, Precision Accuracy
ARGUS laser machines deliver performance excellence for any kind of processing
ARGUS LASER CUTTER ENGRAVER
Discover the laser machine that suits you best!
You are looking for a quality laser machine. But where can you find the best deal? We deliver high-quality at the best prices in this market segment. So you always make the right choice.
Ready to learn more?
Unlimited possibilities with argus laser
Ready? Get a free quote today
  • The new laser system for nonmetal cutting and engraving: high speed, high quality, high productivity
  • Accuracy, productivity and reliability for professionals in the nonmetal cutting engraving industry
FAQs
  • What kind of laser machine and model should I choose?
    Created with Sketch.
    形状 Created with Sketch.
    You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need
  • What kind of materials does the laser machine can process?
    Created with Sketch.
    形状 Created with Sketch.
    We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, Wood, Glass, Leather,Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing jobWe have different laser machines, such as Fiber laser, CO2 Laser, UV Laser Green Laser. Normally Fiber laser can process metal and plastic. CO2 laser is for processing non metallic materials, such as Acrylic, Wood, Glass, Leather,Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job
  • Is it easy to operate?
    Created with Sketch.
    形状 Created with Sketch.
    We will send you manual and guide video in English, I can teach you how to operate t he machine. lf you still can not learn how to use it, we can help you by Team viewer online help software.Or we can talk by phone email or other contact ways.
  • How will you do the after- sale service?
    Created with Sketch.
    形状 Created with Sketch.
    We will firstly check your problems online through Team viewer, E-mail, Whatsapp or other contact way, if it is easy to handle it, we will guide you online to fix it or send you the spare parts for replacement.
