SCU5070
ARGUS
Model | SCU5070 |
Working Platform Size | 700*500mm |

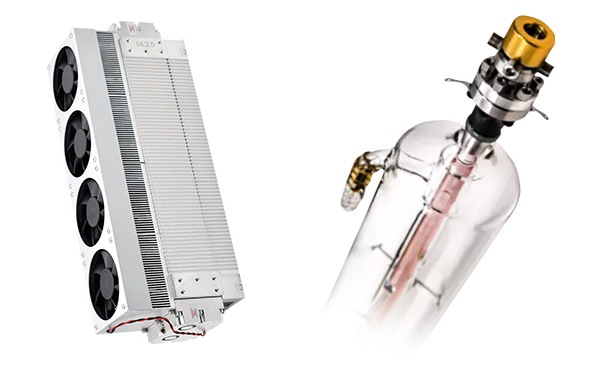

Laser Power | 30W/60W |
Max Cutting Speed | 500mm/s |
Origin Setting(Red Pointer) | Red Pointer:650nm |
Max Engraving Speed | 2000mm/s |

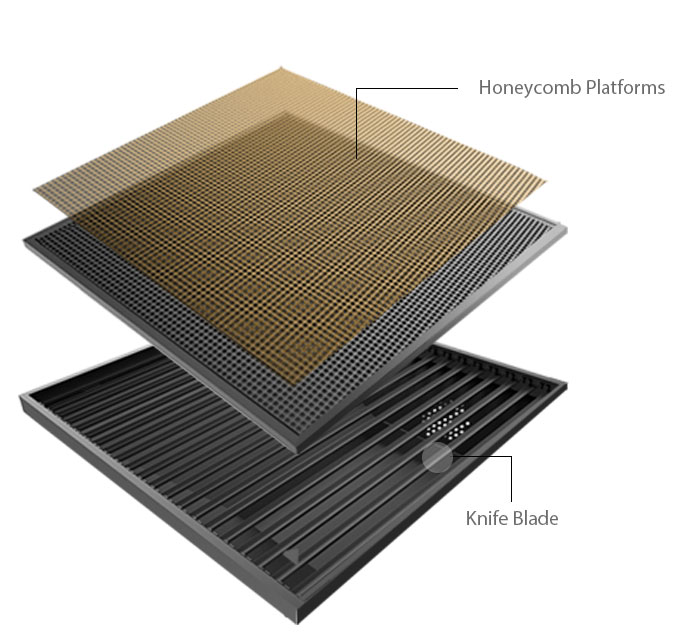

Table Type | Aluminum Strip/Honey Comb |
Table Height Adjustment | 20cm Adjustable |

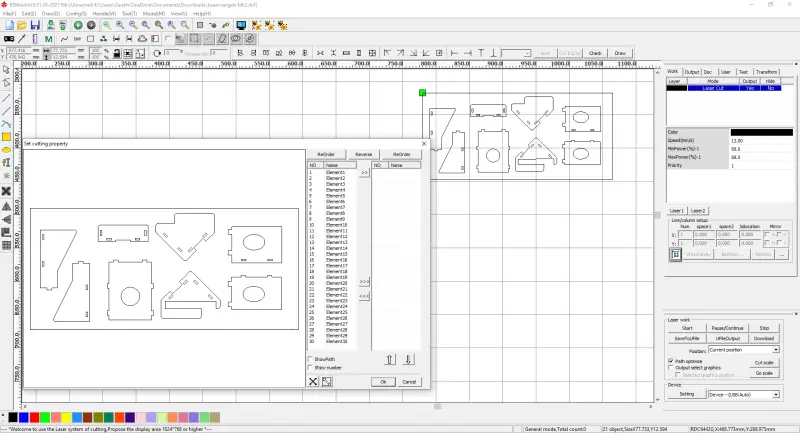

Software Format Support | CorelDraw Photoshop AutoCAD ect |
Graphic Format Support | AI, PLT, BMP, DXF, DST,T100,etc |
Min Cutting Character | English Letter:1.5mm |
Max Cutting Depth | 0~10mm(It's up to material) |
Repeated Positioning Accuracy | ±0.2mm |

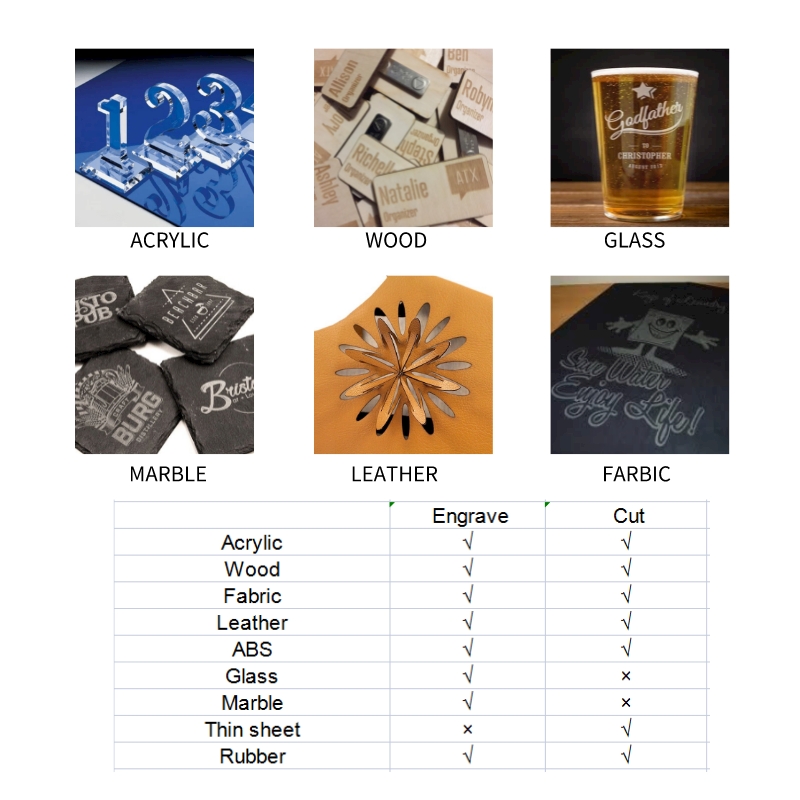

Process Material | Non-Metal Materials |
Cooling Ways | Water Cooling |
3-Phase Stepper Motor | Phase Current:3.5A |
Whole Stepping Angle:1.2° | |
Torque:0.9N.m | |
Working Power | 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA |
Working Temperature | 0~35C |
Working Humidty | 5~95% |
Net Weight | 250KG |
Packing Dimension | 1480*1160*1250mm |
Gross Weight | 380KG |
Cubage | 2CMB |
Model | SCU5070 |
Working Platform Size | 700*500mm |
Laser Power | 30W/60W |
Max Cutting Speed | 500mm/s |
Origin Setting(Red Pointer) | Red Pointer:650nm |
Max Engraving Speed | 2000mm/s |
Table Type | Aluminum Strip/Honey Comb |
Table Height Adjustment | 20cm Adjustable |
Software Format Support | CorelDraw Photoshop AutoCAD ect |
Graphic Format Support | AI, PLT, BMP, DXF, DST,T100,etc |
Min Cutting Character | English Letter:1.5mm |
Max Cutting Depth | 0~10mm(It's up to material) |
Repeated Positioning Accuracy | ±0.2mm |
Process Material | Non-Metal Materials |
Cooling Ways | Water Cooling |
3-Phase Stepper Motor | Phase Current:3.5A |
Whole Stepping Angle:1.2° | |
Torque:0.9N.m | |
Working Power | 220V/50Hz/60Hz/2kVA,110V/50Hz/60Hz/2kVA |
Working Temperature | 0~35C |
Working Humidty | 5~95% |
Net Weight | 250KG |
Packing Dimension | 1480*1160*1250mm |
Gross Weight | 380KG |
Cubage | 2CMB |
Wuhan Sunic Photoelectricity Equipment Manufacture CO., LTD, located at Eastern Lake high-tech district(Optics Valley), is a high technology innovation enterprise recognized by the Chinese government. It is authorized by the government to be in charge of the "863 Project" with privilege in importing and exporting. The company is dedicated to the R&D, production, selling and service in Laser processing equipment and solar energy equipment sets.It provides the customers with complete practical solutions in this field. Today, Sunic is China's leading professional photoelectricity equipment manufacturer in Laser processing equipment with the most complete product line, widest application.
