Laser Tube Cutting Solutions for the Automotive Industry

Laser Tube Cutting - Solutions for the Automotive Industry
Laser Tube Cutting - Solutions for the Automotive Industry

Laser Tube Cutting - Solutions for the Automotive Industry

As the automotive industry evolves toward new energy vehicles (NEVs), lightweight design, and smart manufacturing, the design of automotive structural parts, chassis subframes, anti-collision beams, and exhaust systems is becoming increasingly complex. We provide intelligent and high-precision laser tube cutting solutions to empower digital transformation and capacity leaps in automotive component manufacturing.
Laser Tube Cutting High-Quality Burr-Free Cuts
High-Quality
Burr-Free Cuts
Laser Tube Cutting Intersecting Lines & Bevel Cut Processing
Intersecting Lines & Bevel Cut Processing​​​​​​​
Laser Tube Cutting Ultra-High Efficiency for Mass Production
Ultra-High Efficiency for Mass Production
Laser Tube Cutting Distortion-Free Cutting for Thin-Walled Tubes
Distortion-Free Cutting for Thin-Walled Tubes

Are You Facing These Challenges in Tube Cutting?

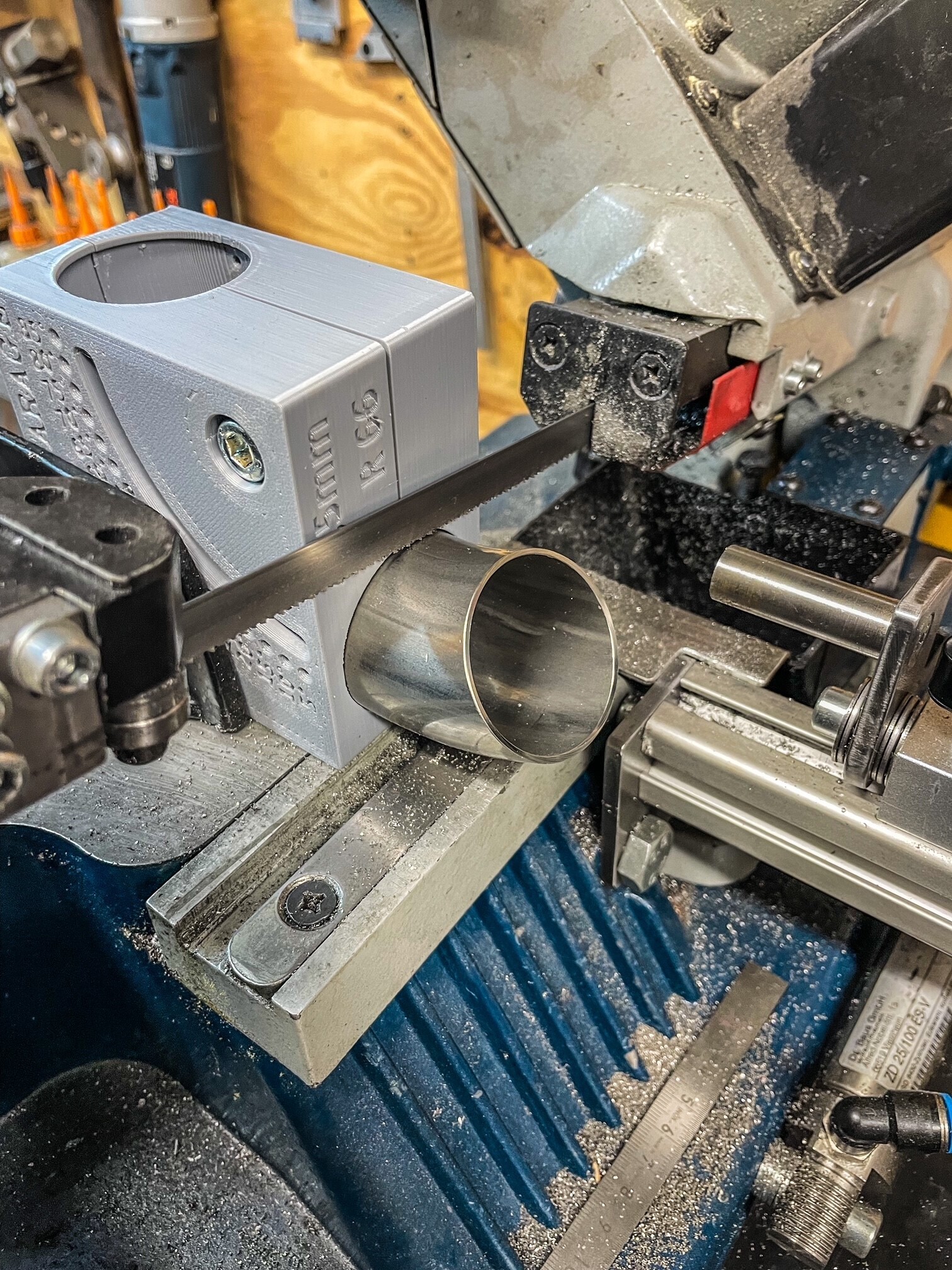

laser tube cutting vs traditional sawing

1.High Mold Costs & Slow Iteration.

2.Tube Deformation & High Scrap Rates

3.Difficulty in Post-Bending Hole Processing

4.Large Assembly Tolerances Affecting Welding


Discover Our Range of Tube Laser Cutting Machines

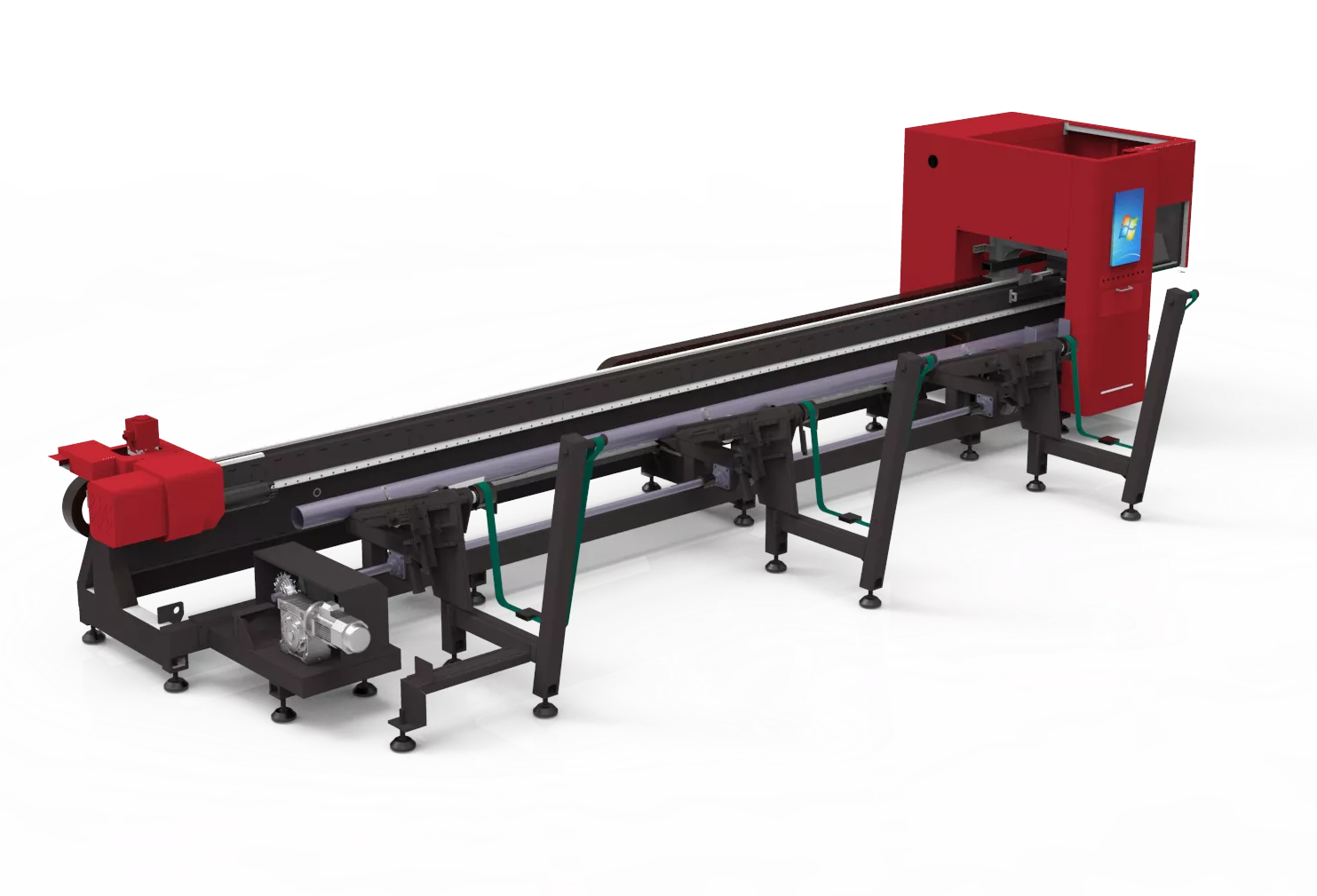

Automatic Loading Intelligent Laser Tube Cutting Machine

Automatic Loading Intelligent Laser Tube Cutting Machine

Applicable Scenarios: Engineered for high-volume, mass production of standardized automotive exhaust tubes, including main exhaust pipes, muffler tubes, and tailpipes.
High Efficiency & Automation:Equipped with automated bundling loaders and smart sorting for hands-free, continuous unmanned operation, drastically cutting labor costs.
Low Single-Piece Cost: Delivers maximum throughput and optimal material utilization, minimizing single-piece processing costs for high-value stainless steel exhaust tubes.

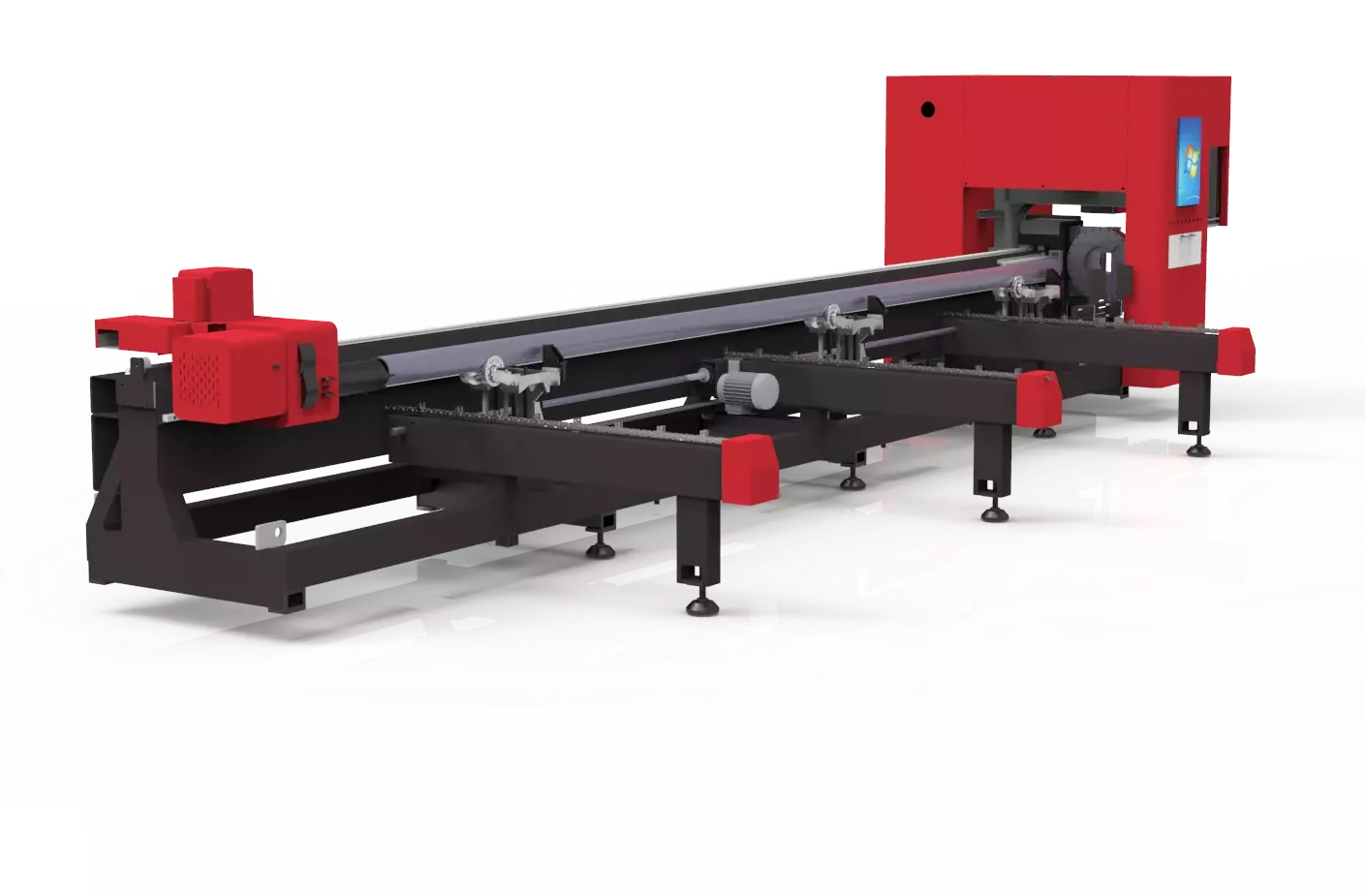

Semi-automatic Feeding Tube Laser Cutting Machine

Semi-Automatic Loading Intelligent Laser Tube Cutting Machine

Applicable Scenarios: Perfect for multi-specification exhaust tube prototyping, small-batch custom orders, or exhaust system factories with limited initial capital and high requirements for line-change flexibility.
Ultra-High Flexibility:Simple setup and flexible manual loading ensure rapid changeovers between exhaust pipes and muffler tubes of different diameters and cross-sections.
Low Initial Investment: Offers outstanding cost-effectiveness with a much lower initial equipment investment, greatly reducing upfront financial pressure for exhaust tube manufacturers.

High Efficiency Across Work Scenarios

laser tube cutting fully automated operation
Fully Automated Operation

Automated Efficiency: Bundled tubes are loaded at once for automatic separation, calibration, and cutting—enabling true unmanned operations and slashing labor costs.

Laser Tube Cutting High-Dynamic Processing
High-Dynamic Processing
Featuring ultra-high acceleration up to 2.0G, it processes thin-walled stainless steel tubes for automotive exhaust and muffler systems with lightning speed.
Laser Tube Cutting True Zero-Tailings Saving
True Zero-Tailings Saving
Zero-Tailings Cost Control: Multi-chuck avoidance technology minimizes tailings to millimeters or true "zero," reducing scrap of expensive materials and boosting profitability.

Why Choose ARGUS Laser Tube Cutting Solution?

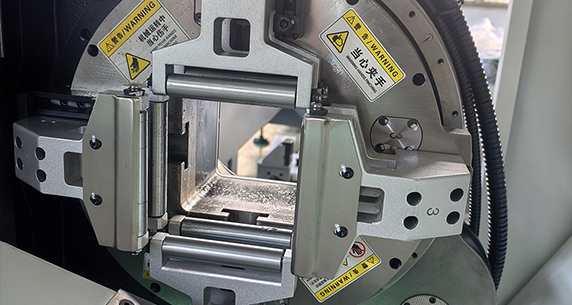

Laser Tube Cutting Ultra-High Dynamic Chucks

Ultra-High Dynamic Chucks

Equipped with lightweight, high-speed chucks and impressive acceleration. Specially optimized for the multi-hole and thin-walled features of exhaust tubes to double production efficiency.

3D Five-Axis & Oscillating Head Cutting

Features a high-precision oscillating laser head supporting 45° beveling. Perfectly designed for high-accuracy, burr-free intersecting lines and bevel cuts at the joints of exhaust manifolds and main pipes.
Laser Tube Cutting 3D Five-Axis & Oscillating Head Cutting
Laser Tube Cutting Seamless Exhaust Design & CAD/CAM Integration



Seamless Exhaust Design & CAD/CAM Integration
Perfectly compatible with mainstream 3D design software for automotive exhaust systems. Paired with self-developed high-density nesting software to push material utilization of muffler and exhaust tubes to the absolute limit.

ARGUS Laser Cuts Various Tube Profiles

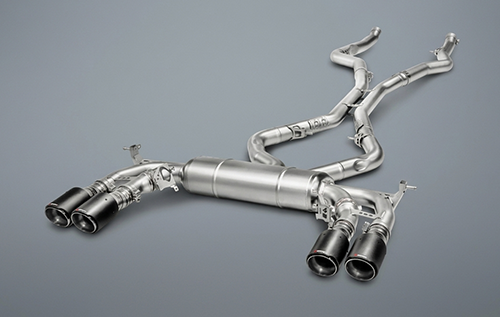

Laser cutting solution for stainless steel main exhaust pipes and tailpipes
Stainless Steel Round Tubes
Used for high-speed cutting and high-precision perforation of main exhaust lines, mid-pipes, and tailpipes.

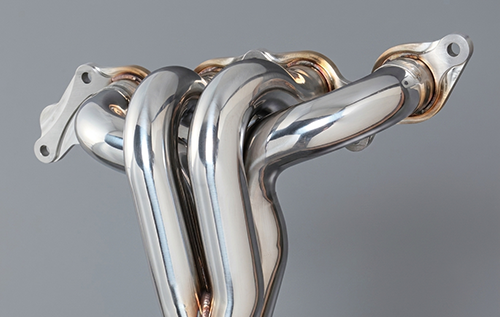

3D laser cutting for stainless steel exhaust manifolds
Stainless Steel Tubes for Manifolds
Used for bevel cutting, process holes, and complex intersecting lines on tubes prior to being bent into exhaust manifolds.

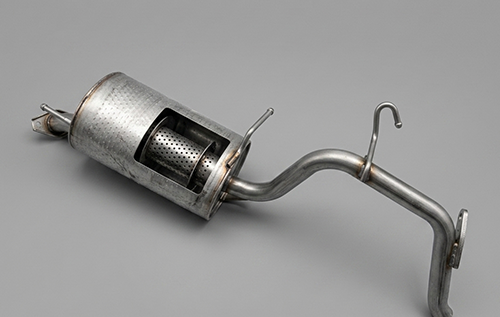

High-speed distortion-free laser perforation for thin-walled muffler tubes
Perforated Thin-Walled Tubes
Used for high-density, multi-hole rapid perforation and deformation-free cutting of internal muffler core tubes.

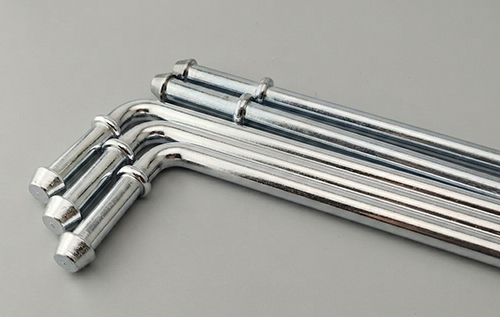

Mold-free 3D laser cutting for automotive exhaust hangers and mounting brackets
Special-Profile Tubes
Used for profiling and cutting solid or special-profile components, such as exhaust hangers, hooks, and mounting brackets.

Processing Dimensions & Thickness Capabilities


Processing Size Range

Pipe/Tube Types Processing Scope
Round Tubes ∅10 -160 mm(or can be extended to 220 mm depending on the positioning))
Square Tubes 10*10 - 160*160mm
Rectangular Tubes Max. Circumscribed Diameter 160mm

Material Thickness Range

Materials Thickness range
Carbon Steel 0.5 - 12mm
Stainless Steel 0.5 - 8mm
Aluminum Alloy 0.5 - 6mm
*The specifications are based on mainstream high-speed laser tube cutting machines for the automotive exhaust industry. Actual processing capacity may vary by machine model. Contact us for free sample testing.

Visual Showcase of Typical Exhaust Tube Processes

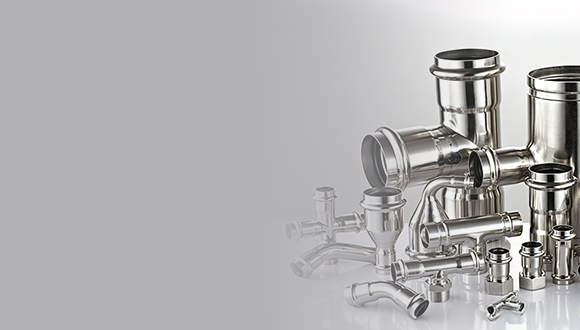

  • Intersecting Line Cutting
    Perfectly processes complex intersecting lines at the joints of main exhaust lines and branch pipes.
    Intersecting Line Cutting

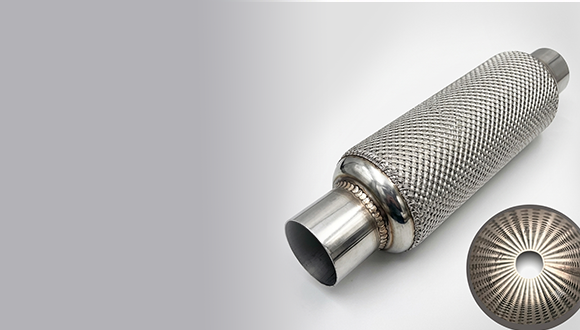

  • High-Density Micro-Perforation
    Efficiently delivers high-density, multi-hole patterns on internal muffler tubes and core pipes.
    High-Density Micro-Perforation

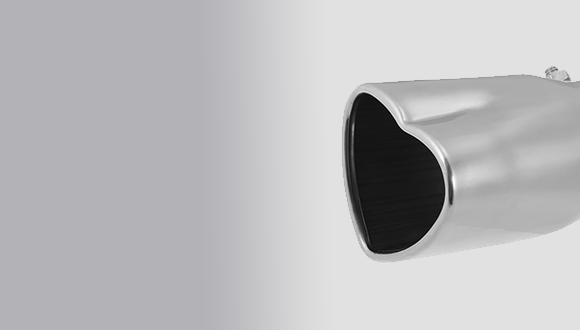

  • Large-Angle Bevel Cutting
    Effortlessly handles large-angle beveling on exhaust tailpipes and manifold joints.
    Large-Angle Bevel Cutting

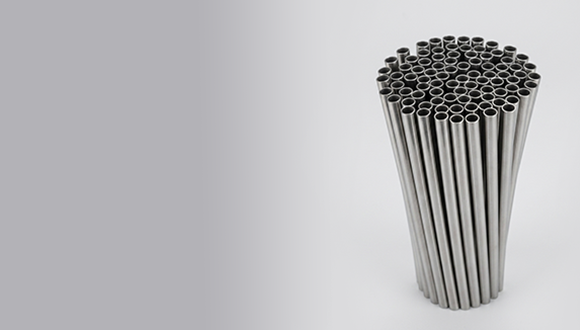

  • Deformation-Free Clamping
    Specially engineered for 0.8mm  - 1.5mm thin-walled stainless steel round tubes to prevent collapsing during processing.
    Deformation-Free Clamping

ARGUS Laser Tube Cutting vs. Traditional Exhaust Processing Methods

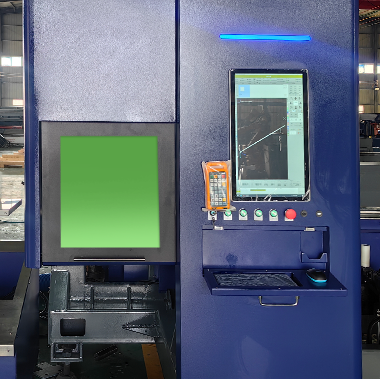

Drawing-free tube laser cutting with direct CAD/CAM software integration
Mold-Free, Flexible Production
Eliminates the need for expensive punching and beveling molds for exhaust pipes. Simply adjust 3D drawings in the software to switch tube specifications within minutes, shortening R&D prototyping from weeks to hours.

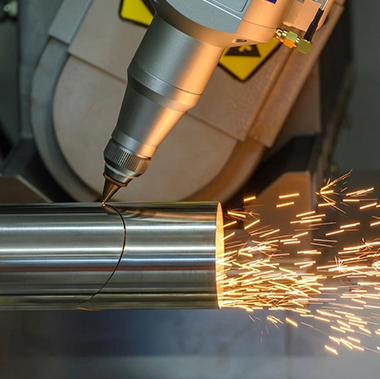

distortion-free laser tube cutting for thin-walled pipes
Multi-Process Integration & Anti-Deformation
A single machine replaces traditional "mechanical sawing + press punching + deburring lines." Non-contact cutting perfectly prevents tube wall collapsing and deformation common in traditional mechanical punching of thin-walled stainless steel exhaust pipes.

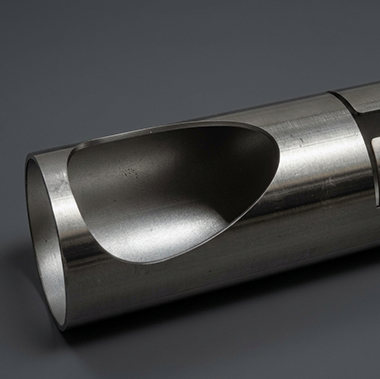

burr-free laser tube cutting for stainless steel
Ready-to-Weld Edge Quality
Produces smooth, burr-free cuts with excellent quality on manifold intersecting lines and bevels. Requiring no secondary grinding, the cut tubes can be directly sent to robotic automated welding stations for seamless assembly.


See the Cutting Quality

Trusted by Customers Worldwide


Global Reach​​​​​​​
Exported to 100+ countries​​​​​​​
Universal Service​​​​​​​
Serving small workshops to industrial manufacturers​​​​​​​
Industry-Proven​​​​​​​7*24 Hours Service
Proven performance across multiple industries​​​​​​​

Full Support for Your Business

overseas installation and commissioning for tube laser

Installation guidance after-sales problems.
contact us
comprehensive operator training for tube laser cutters

OEM & customization available​​​​​​​
contact us

7×24 technical support provide you with the best price.
contact us
24/7 technical support for industrial laser cutters

Training included​​​​​​​
contact us

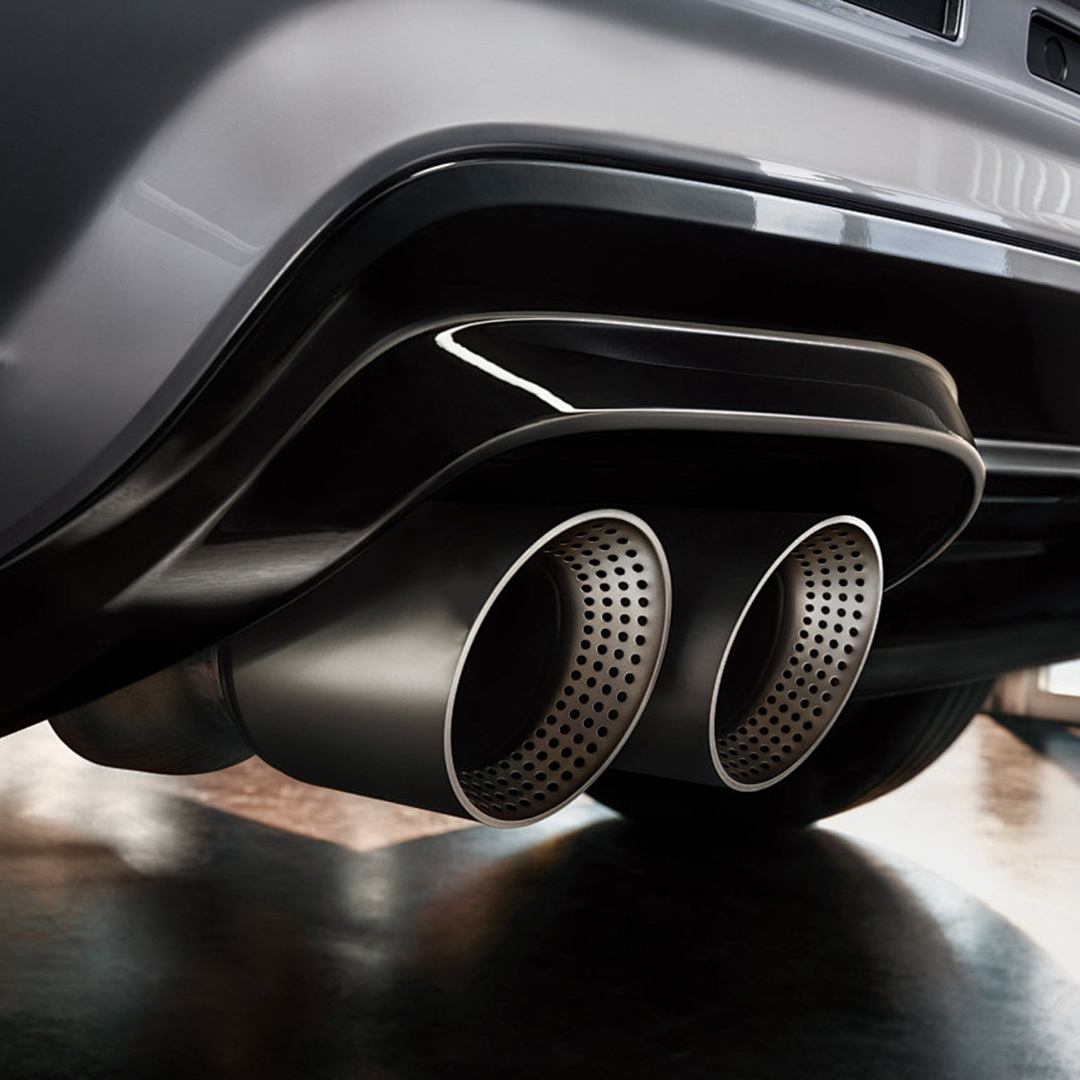

mold-free OEM tube laser cutting services

Frequently Asked Questions


  • Which components of an automotive exhaust system are best suited for this laser tube cutting machine?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine is widely used for high-efficiency cutting and perforating of main exhaust lines, mid-pipes, tailpipes, engine exhaust manifolds (pre-bending stage), and internal perforated muffler core tubes.
  • What types of metal materials commonly used in automotive exhaust systems can this machine process?
    加 Created with Sketch.
    形状 Created with Sketch.
    It supports various automotive-grade stainless steels (such as 409L, 439, 304 ferritic and austenitic stainless steels), as well as carbon steel and custom profiles commonly used for exhaust hooks or mounting brackets.
  • Which Industries Use Laser Tube Cutting Machines?
    加 Created with Sketch.
    形状 Created with Sketch.
    They are widely used in construction steel structures, furniture manufacturing, fitness equipment, automotive parts, metal fabrication, and decorative engineering.
  • How does the machine ensure no tube deformation when cutting thin-walled stainless steel exhaust pipes under 1.5mm in thickness?
    加 Created with Sketch.
    形状 Created with Sketch.
    The machine utilizes non-contact laser processing combined with a smart pneumatic clamping control system optimized for thin-walled tubes. This perfectly avoids tube wall collapsing or flattening caused by traditional mechanical sawing or punching, preserving 100% cross-sectional roundness.
  • Can the machine handle complex intersecting lines and bevel cuts required for exhaust manifold joints in a single operation?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Equipped with an oscillating laser head and multi-axis linkage system, the machine supports up to 45° large-angle beveling and can form complex multi-tube intersecting lines in a single setup, eliminating secondary processes.
  • Is the Machine Compatible with 3D Design Software?
    加 Created with Sketch.
    形状 Created with Sketch.
    Yes. Most machines are compatible with mainstream software such as UG, SolidWorks enabling seamless drawing import and efficient production.
  • What cross-sectional shapes of automotive exhaust tubes can the equipment support?
    加 Created with Sketch.
    形状 Created with Sketch.
    Beyond the most common round tubes in exhaust lines, the machine is fully compatible with square, rectangular, oval, D-shaped, and various custom profiles used in exhaust systems and mounting brackets.
