Pop Up Wedding Invitation Card Cutter Galvo Co2 Laser Marking Machine SCM2000

The  galvo CO2 laser marking machine SCM2000 model is  for non-metal  materials marking engraving and cutting on large area up to 800×800 mm. It has been widely used in pop up card,wedding invitation card ,ect field.
Quantity:
  • SCM2000

photobank (2)

photobank

marker cutting paper details


Technical Parameter


Model

SCM2000

Max working Area

800*800mm

Laser power

150watts/250 watts/350watts

Power Consumption

≤ 5-7kWh

Life Span

Over 20000 hours

Marking Speed

≤7000mm/s

Worktable

MDF/Strip/Honeycomb worktable

Laser Source

US Coherent Diamond J Series Laser Tube

Laser Wavelength

10.64μm

Laser Frequency

20kHz~200kHz

Focusing method

3D dynamic focusing system

System Support

Windows

Output Compatibility

Auto CAD, Photoshop, CorelDRAW etc

File Formats

PLT, DXP, BMP, JPG, AI etc

Software Character

Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting

Power Supply

110V~380V/50Hz~60Hz

Cooling Way

Circulation of Water Cooling

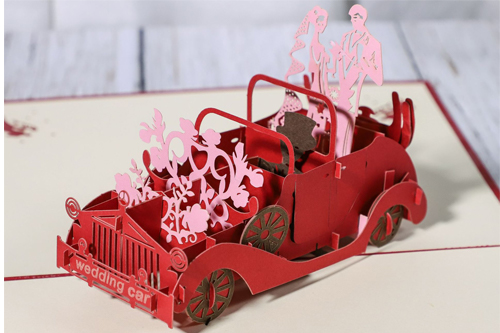

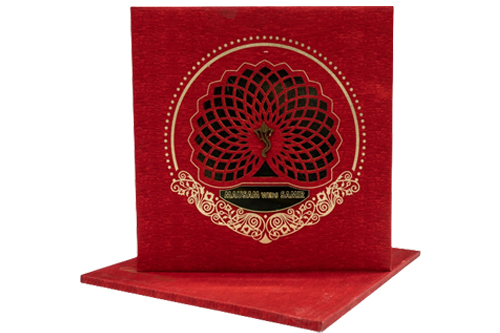

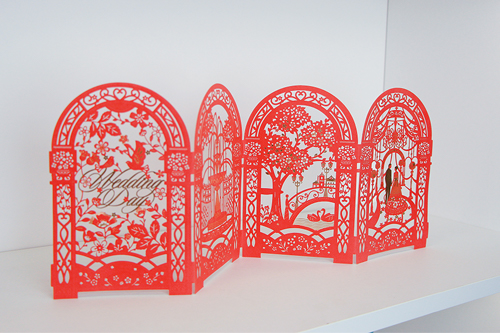

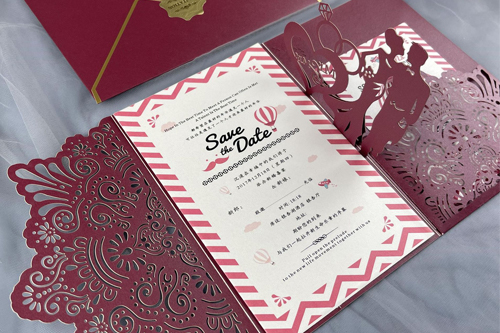

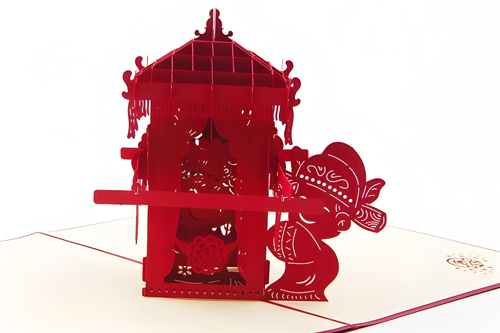

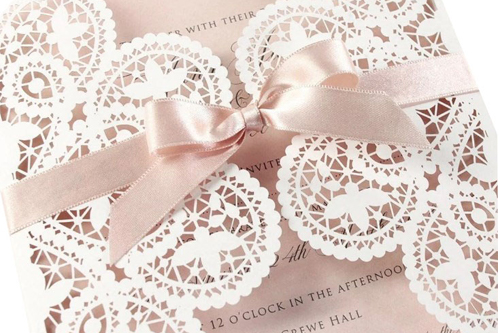

Samples

paper card


Brief Introduction

The machine adopts US Coherent RF metal co2 laser source, compare to glass laser source, the laser beam size is 3 times more smaller than RF metal laser beam size. With thinner laser beam , it is good for marking, cutting, engraving, color removal, paint processing, material micro-processing and etc. The equipment adopts Aluminum frame structure, and the latest motor driving in the whole worktable platform to ensure the stable qualities. The adjustment of laser optical path is driven by two galvanometer motors(XY), and the third axis is driven by pre-scanning gathered system to make a wildly adjustment for focus distance.



Machine Structure

  • SCM2000 with digital electronics designed and manufactured by ARGUS LASER allows outstanding laser beam quality  for the best cutting performances up to 400×400 mm working area. high performance dynamic bean-expander actuated by galvanometric motor, enables best in class high marking speed.

  • With the Red Light Indication System and CCD Positioning System enables the correct centering of the working path to the real position of the piece in process (optional).

  • With U.S.A. Coherent CO2 R.F. Metal Laser Sources(maintenance-free), provide SCM2000 with maximum reliability and high qualityperformance.


Advantage of CO2 Dynamic Laser Marking Machine

1. Permanent

Mark will not subside because of environmental reasons(touch, acidic or reducing gas, high or low temperature etc).

2. Non-contact

Laser marking is a non-mechanical “light knife” for processing, the workpiece will not produce stress after marking. The working surface will not produce corrosion, no “tool” worn, non-toxic, non-polluting.

3. High precision for engraving&marking

CO2 Dynamic Laser Marking Machine can engrave fine pattern, the minimum line width can reach to 0.04mm. Engraving&Marking result is clear, durable and beautiful.

4. Low operating costs

Low energy consumption, no consumptive materials, and therefore lower operating costs.

5. High efficiency

CO2 Dynamic Laser Marking Machine’s Engraving&Marking speed can reach to 7000m/s, three times than that of traditional laser marking machine, marking process can be completed in seconds.
